Standards: ASTM B-21, ASTM B-124, ASTM B-171, SAE J461, SAE J463, SAE 73, AMS 4611, AMS 4612, DIN 3.053
Naval Brass C46400 is nominally composed of 60% copper, 39.2% zinc, and 0.8% tin. As is typical of brass alloys with the duplex alpha + beta structure, C46400 has good strength and rigidity. By substituting tin for an equal quantity of zinc, a high corrosion resistance to seawater is achieved. The addition of tin also gives the alloy an inherent resistance to dezincification, thereby further inhibiting the impingement by seawater at higher than normal temperatures. The alloy is also noted for its resistance to wear, fatigue, galling, and stress corrosion cracking.

Standards: ASTM B-21, ASTM B-124, ASTM B-171, SAE J461, SAE J463, SAE 73, AMS 4611, AMS 4612, DIN 3.053
Naval Brass C46400 is nominally composed of 60% copper, 39.2% zinc, and 0.8% tin. As is typical of brass alloys with the duplex alpha + beta structure, C46400 has good strength and rigidity. By substituting tin for an equal quantity of zinc, a high corrosion resistance to seawater is achieved. The addition of tin also gives the alloy an inherent resistance to dezincification, thereby further inhibiting the impingement by seawater at higher than normal temperatures. The alloy is also noted for its resistance to wear, fatigue, galling, and stress corrosion cracking.

Standards: ASTM B-21, ASTM B-124, ASTM B-171, SAE J461, SAE J463, SAE 73, AMS 4611, AMS 4612, DIN 3.053
Naval Brass C46400 is nominally composed of 60% copper, 39.2% zinc, and 0.8% tin. As is typical of brass alloys with the duplex alpha + beta structure, C46400 has good strength and rigidity. By substituting tin for an equal quantity of zinc, a high corrosion resistance to seawater is achieved. The addition of tin also gives the alloy an inherent resistance to dezincification, thereby further inhibiting the impingement by seawater at higher than normal temperatures. The alloy is also noted for its resistance to wear, fatigue, galling, and stress corrosion cracking.

The Copper Flat Bar has the advantages of high cleanliness, uniform and compact structure, high-precision specifications, and strong formability. Copper bars, also known as red copper, are all copper, so named because of their blue-violet hue. Copper is this industrially produced full copper with a melting point of 1083°C, no isomer conversion, and a density of 8.9. The same volume is about 15% heavier than normal steel.

The Copper Flat Bar has the advantages of high cleanliness, uniform and compact structure, high-precision specifications, and strong formability. Copper bars, also known as red copper, are all copper, so named because of their blue-violet hue. Copper is this industrially produced full copper with a melting point of 1083°C, no isomer conversion, and a density of 8.9. The same volume is about 15% heavier than normal steel.

The Copper Flat Bar has the advantages of high cleanliness, uniform and compact structure, high-precision specifications, and strong formability. Copper bars, also known as red copper, are all copper, so named because of their blue-violet hue. Copper is this industrially produced full copper with a melting point of 1083°C, no isomer conversion, and a density of 8.9. The same volume is about 15% heavier than normal steel.

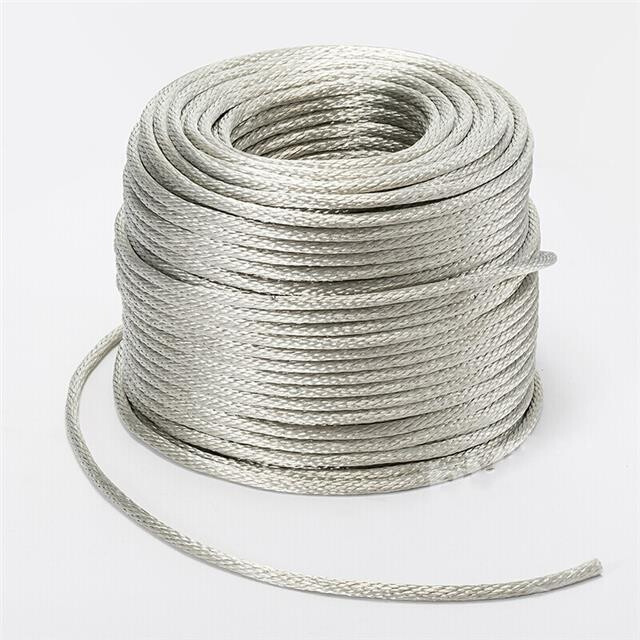

1) Size of Tinned copper wire: 0.03-4.0mm
2) Tinned coating: hot dip: max 0.6μm; electroplate: max 5μm
3) Conductivity:≥ 98%
4) Resistivity: 0.047Ωmm²/m @20℃
5) Elongation: ≥10%
6) Tensile Strength:>180Mpa
7) Purity: usually ≥99.9%

1) Size of Tinned copper wire: 0.03-4.0mm
2) Tinned coating: hot dip: max 0.6μm; electroplate: max 5μm
3) Conductivity:≥ 98%
4) Resistivity: 0.047Ωmm²/m @20℃
5) Elongation: ≥10%
6) Tensile Strength:>180Mpa
7) Purity: usually ≥99.9%

1) Size of Tinned copper wire: 0.03-4.0mm
2) Tinned coating: hot dip: max 0.6μm; electroplate: max 5μm
3) Conductivity:≥ 98%
4) Resistivity: 0.047Ωmm²/m @20℃
5) Elongation: ≥10%
6) Tensile Strength:>180Mpa
7) Purity: usually ≥99.9%

Standard: JIS,EN,BS,ASTM,GB
Processing Service: Bending, Welding, Decoiling, Punching, Cutting
Delivery Time: 3-30 days
MOQ: 1Tons
Length:Customer request
Trade terms: CIF, FOB, EXW, FCA, DDP
Transaction method: 30%TT,LC
Place of Origin: China

Standard: JIS,EN,BS,ASTM,GB
Processing Service: Bending, Welding, Decoiling, Punching, Cutting
Delivery Time: 3-30 days
MOQ: 1Tons
Length:Customer request
Trade terms: CIF, FOB, EXW, FCA, DDP
Transaction method: 30%TT,LC
Place of Origin: China

Standard: JIS,EN,BS,ASTM,GB
Processing Service: Bending, Welding, Decoiling, Punching, Cutting
Delivery Time: 3-30 days
MOQ: 1Tons
Length:Customer request
Trade terms: CIF, FOB, EXW, FCA, DDP
Transaction method: 30%TT,LC
Place of Origin: China
